R507 is an HFC replacement option for R-22 and R-502 in low and medium-temperature commercial refrigeration systems. It can be used in new and existing systems, and provides very similar performance to R-502 over the entire operating range.

Replaces
R-22 and R-502



Applications
Low and medium temperature commercial refrigeration equipment., including supermarket -display cases, transport refrigeration and ice machines.
Low and medium temperature industrial refrigeration applications.
Benefits
Close match for R-502: Works over the entire R-502 operating range.

Physical properties:

ComponentChemical nameMolecular formulaWeight%
HFC-125Pentafluoroethane   CHF2CF350
HFC-143a1,1,1-Trifluoroethane   CH3CF350
Molecular weight   98.9
Boiling point   -46.7 ℃
Critical temperature   70.9℃
Critical pressure   3793.6kPa
Odor   Slight ethereal
Form      Liquefied gas
Color   Clear, colorless
Heat of vaporization at boiling point      200.49KJ/kg
Vapor Pressure at 25 ℃   1287.01kPa
Vapor Density at 25 ℃ (Air = 1)   5.569
Liquid Density at 25 ℃      1.047g/cm3
Ozone Depletion Potential(ODP)   0
Global Warming Potential(GWP) 100yr   3900
ASHARE Safety Group Classification   A1/A1
Flammability at 1 atm. and 18 ℃   Non-flammable


Lubricant Recommendation
POE


Packing:

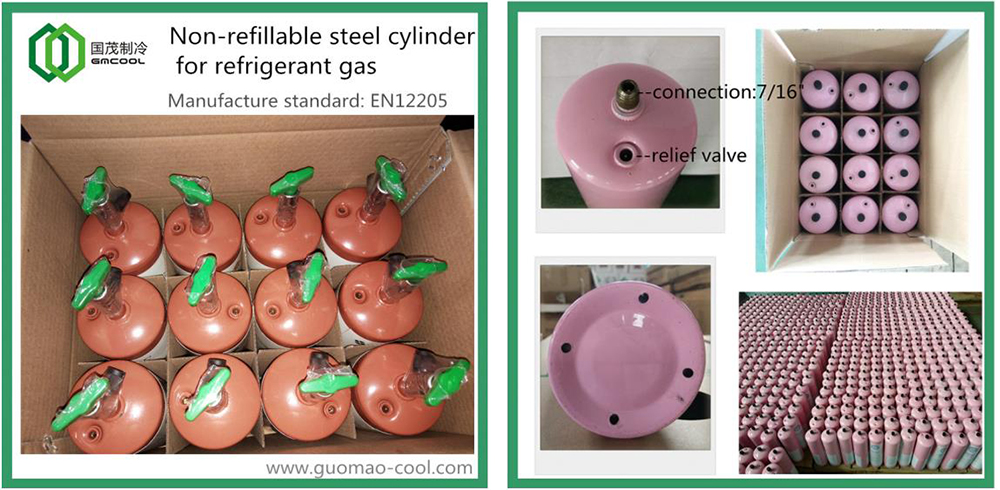

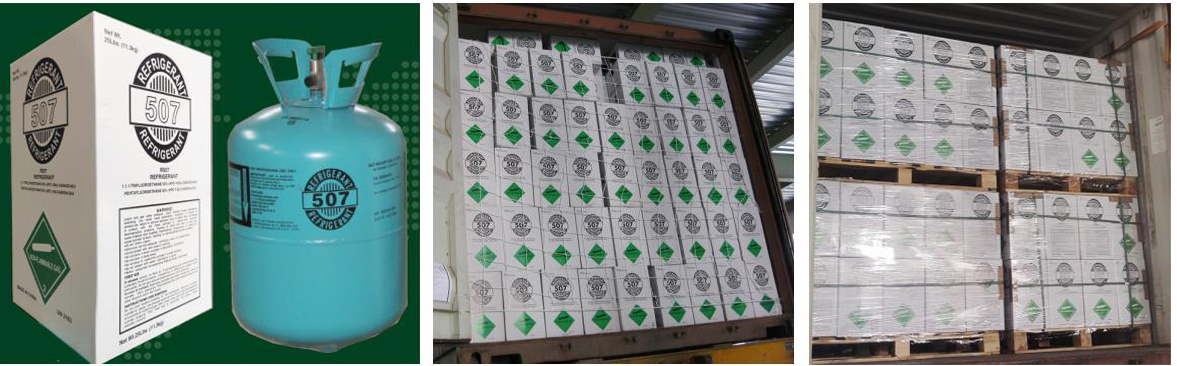

Disposable cylinder 25lb(11.3kg)/cylinder

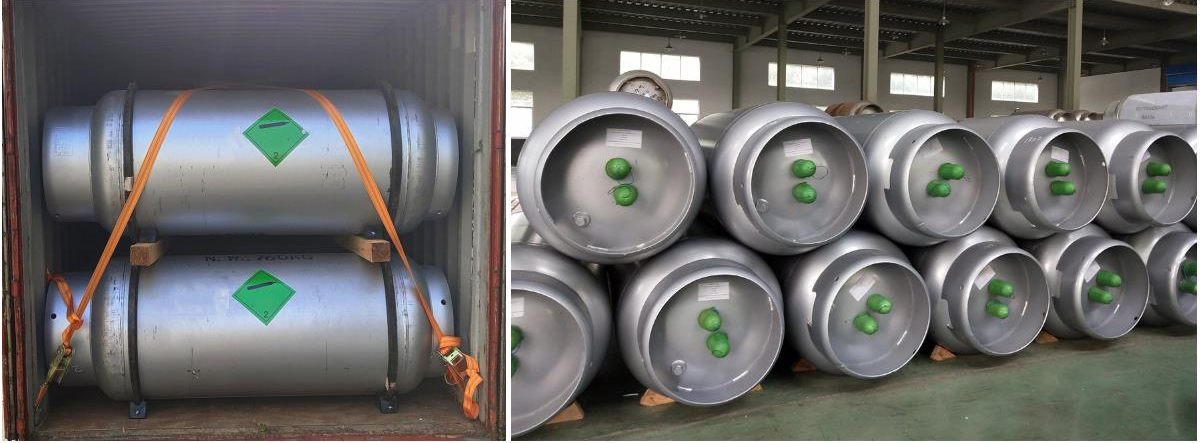

Refillable cylinder 10kg/cylinder, 760kgs/ton cylinder
Iso tank 16,000-18,000kgs/iso tank
