R404A refrigerant

R404A continues to lead the way as the global industry standard HFC refrigerant for new commercial refrigeration applications. R404A delivers exceptional capacity and efficiency as an R-502 and R-22 long-term replacement in refrigeration applications and is approved for use by the leading compressor and equipment manufacturers worldwide.

Replaces

R-502,R-22

Applications

-Commercial refrigeration equipment

-New and existing R-502 equipment, include supermarket freezer cases, reach-in coolers, display cases, transport refrigeration and ice machines.

Benefits

Close Match for R-502:   Works over the entire R-502 operating range.

OEMs recommend POE oil for optimum reliability.

Physical properties:

Specifications:

Appearance: clear and colorless

Odor: not strange odor

Purity: 99.8% min.

Moisture: 10ppm max.

Acidity(as HCl): 0.1ppm max.

Residue after evaporation: 100ppm max.

Non-condensable gas: 1.5% max.

Lubricant Recommendation
POE

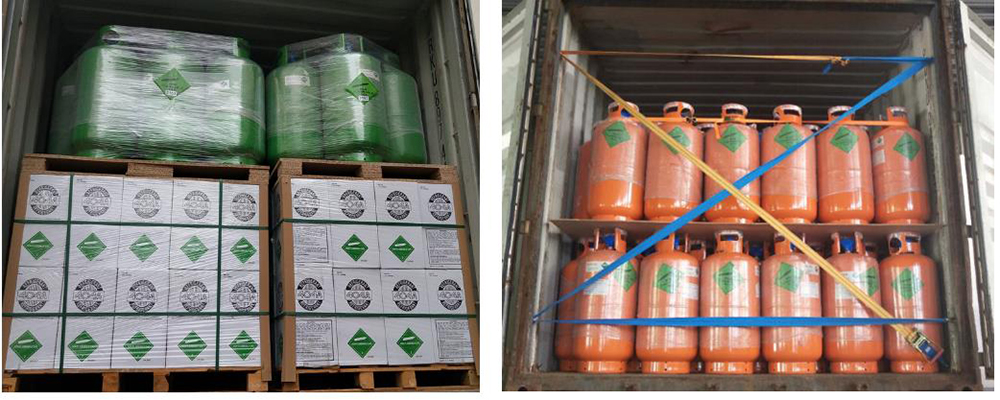

Packaging and Transportation:

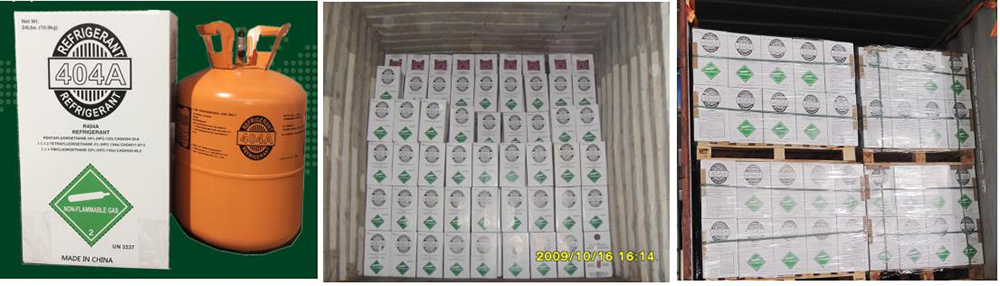

-Disposable welded steel cylinders( Chinese standard, DOT-39, EN ISO11118):

24lb.(10.9kg)/cylinder, 1150pcs/20ft container without pallets, or 900pcs/20ft container with pallets

12lb.(5.6kg)/cylinder, 1900pcs/20ft container without pallets, or 1500pcs/20ft container with pallet

6lb.(2.8kg)/cylinder, 3100pcs/20ft container without pallets

This non-refillable steel cylinders are suitable for most countries except EU countries,Turkey and India.

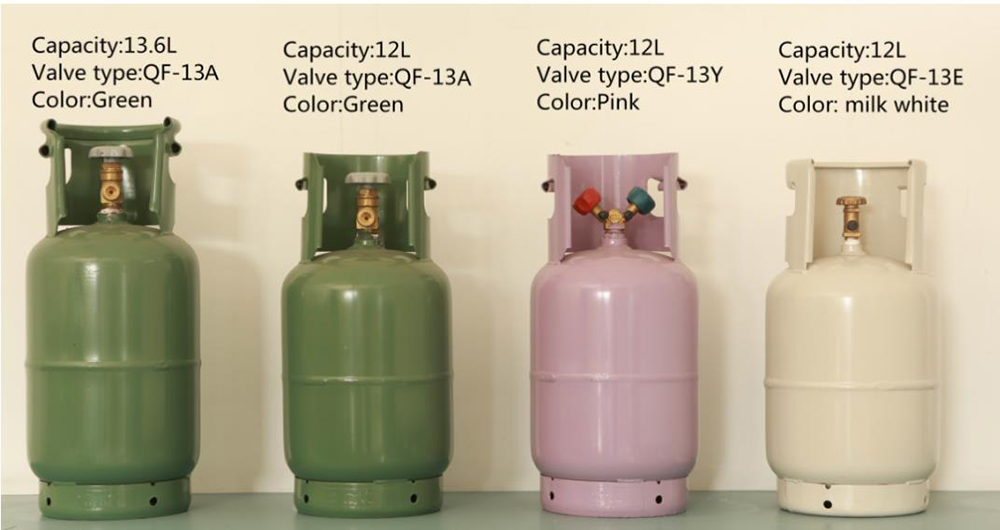

Refillable welded steel cylinder (EN13322-1, CE standard)

9.8kg/cylinder, 800PCS/20FL with pallets,1034PCS/20FCL without pallets

48kg/60L cylinder, 180PCS/20FCL with pallets,216PCS/20FCL without pallets

Other available packaging: 11.1kg/13.6Lcylinder,11.7kg/14.3Lcylinder

Refillable welded steel cylinder (EN13322-1, CE standard)

9.8kg/cylinder, 800PCS/20FL with pallets,1034PCS/20FCL without pallets

48kg/60L cylinder, 180PCS/20FCL with pallets,216PCS/20FCL without pallets

Other available packaging: 11.1kg/13.6Lcylinder,11.7kg/14.3Lcylinder

This refillable steel cylinders are specially for EU countries, Turkey.

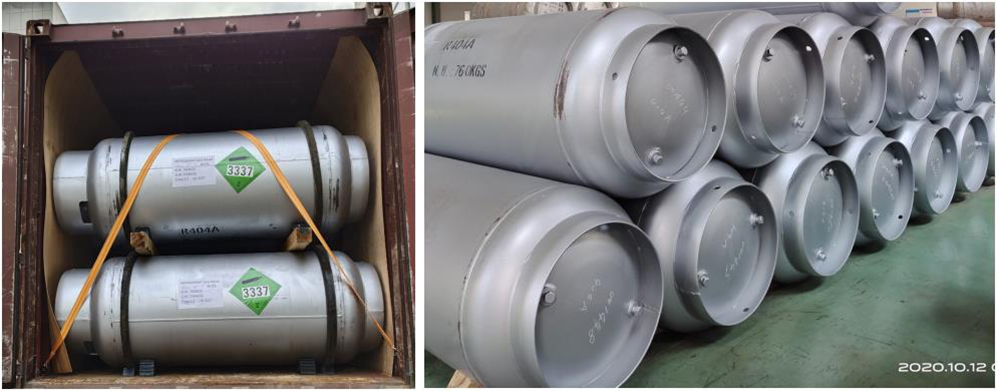

- 926L ton cylinders / ton container/ton tank (Chinese standard)

N.W.650kg/cylinder, 14pcs/20ft container

Ton cylinders are acceptable in most countries except USA, Japan and Canada. For EU countries, ton cylinders are not allowed to use in EU, but some countries allow them to be imported just as transportation packaging.

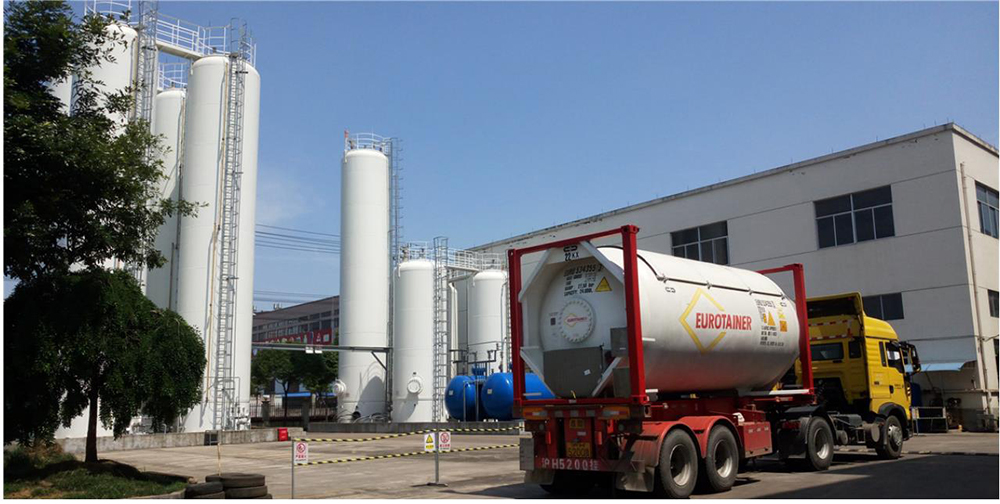

- iso tank container, 15,000-18,000kg/tank

Iso tanks for different countries are available.

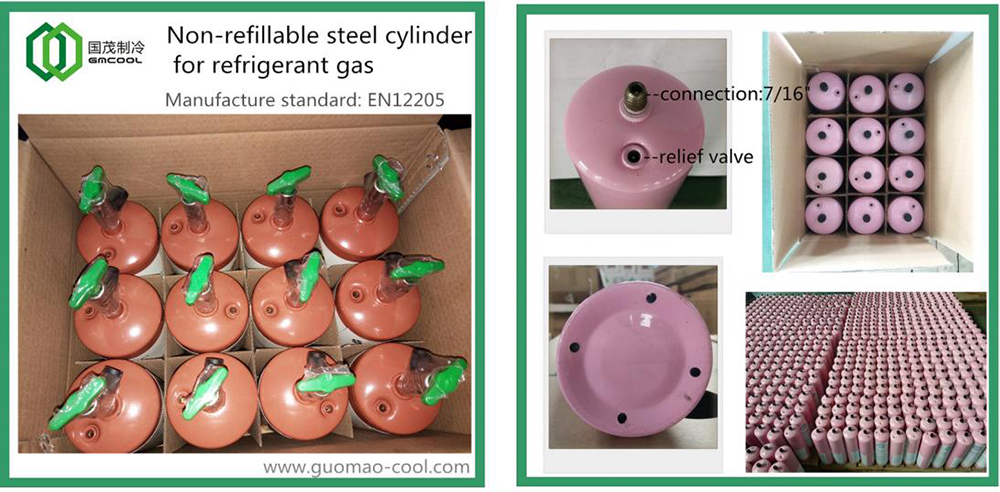

- Non-refillable welded steel bottles

650gram/can, 12cans/carton,1100-1350cartons/20ft container

Proper Shipping Name:Refrigerant Gas R 404A

IMO CLASS:2.2      UN3337

Refrigerant gas is dangerous goods, which should be delivered by sea or railway. The minimum order quantity of refrigerant gas is one 20feet container

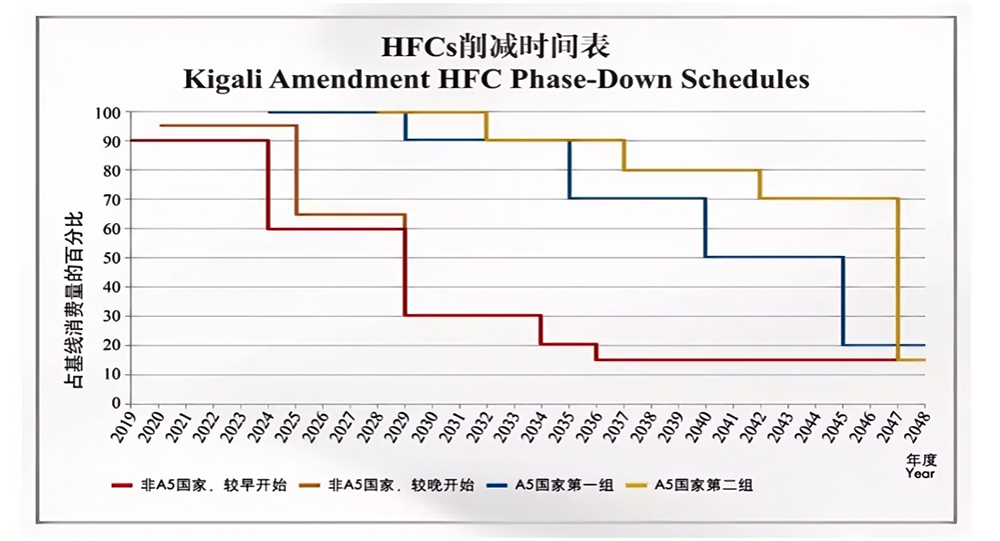

Refrigerant R-404A is HFCs refrigerant, which will be phased down due to high GWP(3922). Here is Kigali Amendment HFC Phase-Down Schedules,

The substitute with low or zero GWP of R-404A will be R-448A, R-455A,R-449A,R-452A,R-454C.
