| Specifications | 99.9% MIN. |
| Grade Standard | Industrial Grade |
| Transport Package | 10kg disposable steel cylinder, outer carton boxes |
| H.S.CODE | 2903510000 |
| Min. Order | 800cylinders |
| Port of Loading | Ningbo or Shanghai, China |
| Trade Mark | GM COOL,customized |
| Origin | Zhejiang, Jiangsu |
| Certificate | DOT-39,KGS, REACH, CE |
| Production Capacity | 20,000pcs per year |
| IMO UN NUMBER | 3161/2.1 |
Refrigerant R-1234yf (HFO-1234yf)
R1234yf is an HFO based single component. It is the primary composition of the popular environment friendly mixed refrigerant gas. Now, it is used in the mobile air conditioner for its zero ODP and almost zero GWP.
Replace
R134a
Benefit
Environment friendly. GWP<1, zero ODP
Close match for R134a.
Applications
Substitute for R134a in mobile air conditioner.
Refrigerator.
Drink vending machine.
Specifications
| Items | Specifications |
| Appearance | Colorless, liquefied gas |
| Purity %≥ | 99.8 |
| Moisture,mg/kg ≤ | 20 |
| Acidity(as HCl) mg/kg ≤ | 1 |
| Residue after evaporation mg/kg ≤ | 100 |
| Non-condensable gas v/v % ≤ | 1.5 |
Physical properties
| Component: | Chemical name: | Molecular formula: | Weight%: |
| HFO-1234yf | 2,3,3,3-Tetrafluoro-1-propene | CF3 CF=CH2 | 100 |
| Molecular weight | 114.04 | ||
| Boiling point | -29 ℃ | ||
| Melting point | -152 ℃ | ||
| Critical temperature | 94.7℃ | ||
| Critical pressure | 33.82bar | ||
| Odor | odorless | ||
| Form | Liquefied gas | ||
| Color | Clear, colorless | ||
| Vapor Pressure at 21.1 ℃ | 0.6067MPa | ||
| Vapor Pressure at 60℃ | 1.64MPa | ||
| Vapor Density at 25 ℃ (Air = 1) | 4 | ||
| Liquid Density at 25 ℃ | 1.094g/cm3 | ||
| Ozone Depletion Potential(ODP) | 0 | ||
| Global Warming Potential(GWP) 100yr | <1 | ||
| ASHARE Safety Group Classification | A2L | ||
| Flammability at 1 atm. and 18 ℃ | Flammable | ||
Lubricant Recommendation
POE or PAG
Packaging and Transportation information:

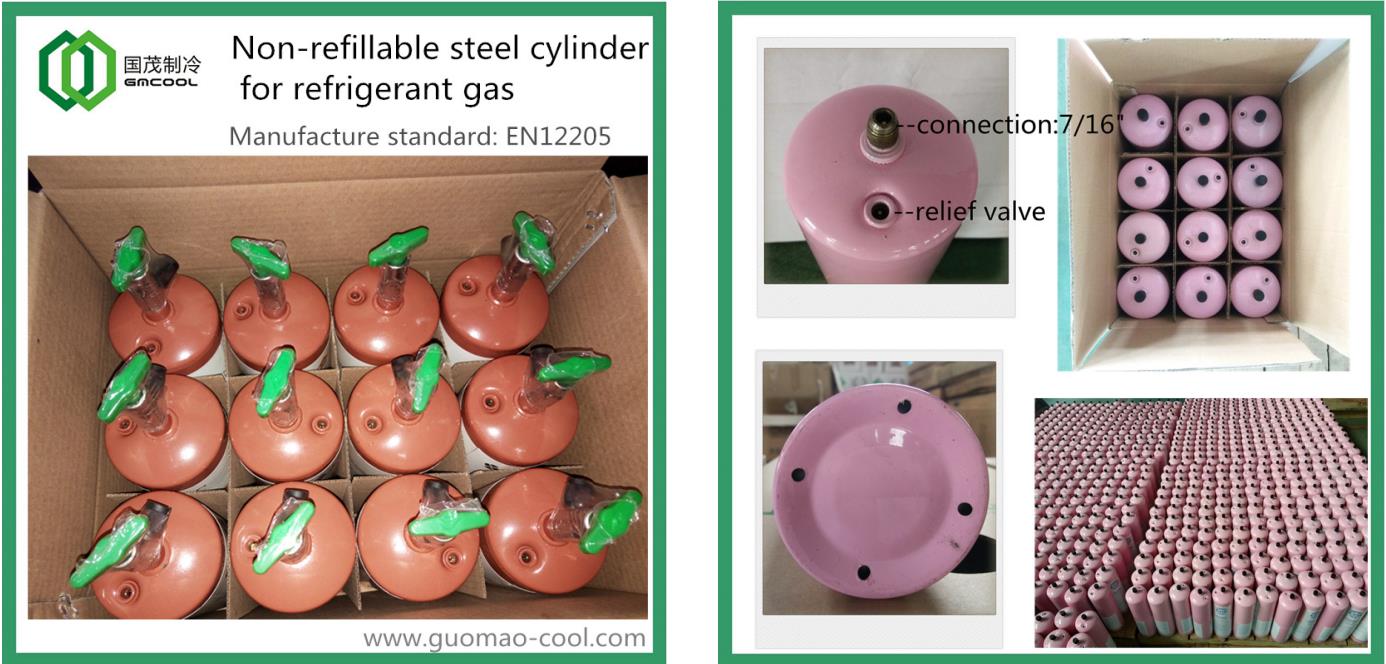

-Non-refillable welded steel cylinder
5kg(10lb.)/cylinder 1900pcs/20ft container without pallets, or 1500pcs/20ft container with pallet
10kg()/cylinder,1150pcs/20ft container without pallets, or 900pcs/20ft container with pallets

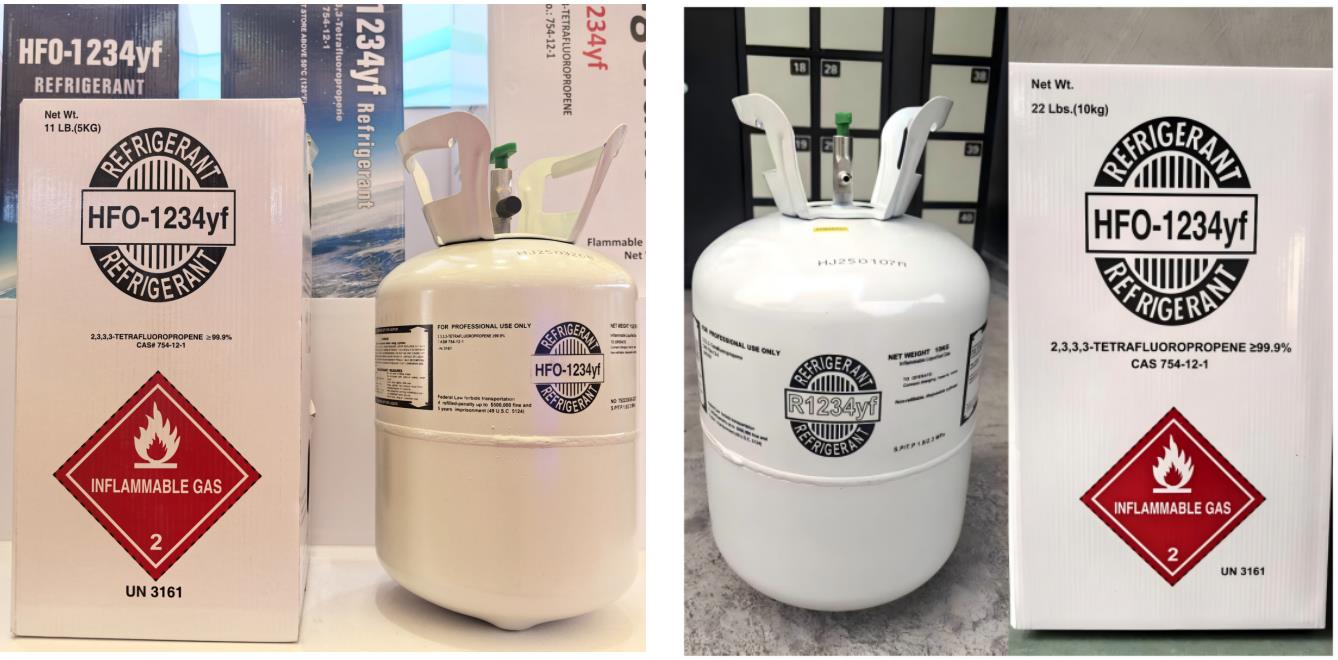

-Refillable steel cylinder (Standard: EN 13322-1, CE)
10.0KGS/12L cylinder, 800PCS/20FL with pallets,1034PCS/20FCL without pallets
56kg/60L cylinder, 180PCS/20FCL with pallets,216PCS/20FCL without pallets
Other available packaging: 11.1kg/13.6Lcylinder,11.7kg/14.3Lcylinder
This refillable steel cylinders are specially for EU countries, Turkey.

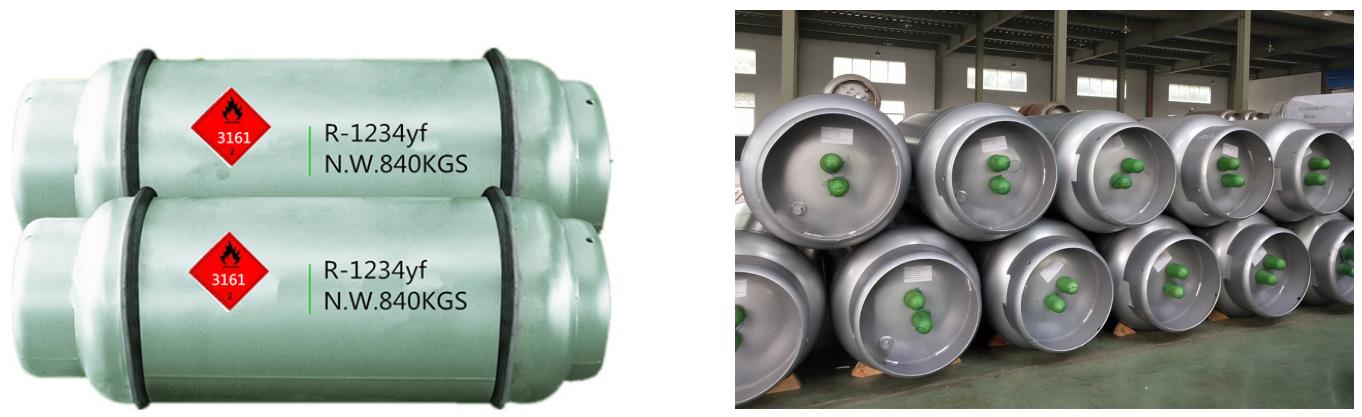

-926L Ton cylinder, NW.840KG/cylinder
-Ton cylinders are acceptable in most countries except USA, Japan, Canada and Oceanian countries. For EU countries, ton cylinders are not allowed to use in EU, but some countries allow them to be imported just as transportation packaging.

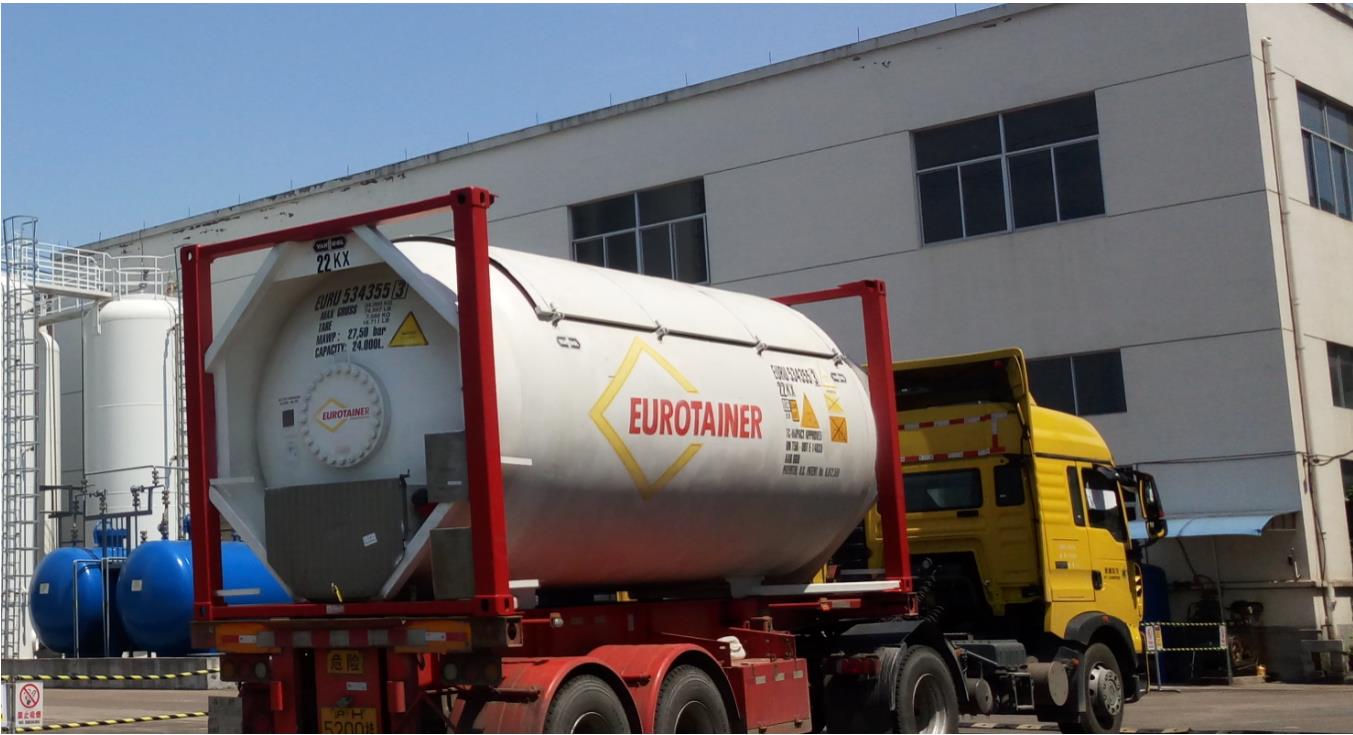

- iso tank container, 18,000-20,000kg/tank
Iso tanks for different countries are available.
- Non-refillable welded steel bottles
700gram/can, 12cans/carton,1100-1350cartons/20ft container
Transportation information:
Proper Shipping Name: LIQUEFIED GAS,FLAMMABLE,N.O.S (R-1234yf)
IMO CLASS:2.1 UN3161
Refrigerant gas is dangerous goods, which should be delivered by sea or railway. The minimum order quantity of refrigerant gas is one 20feet container

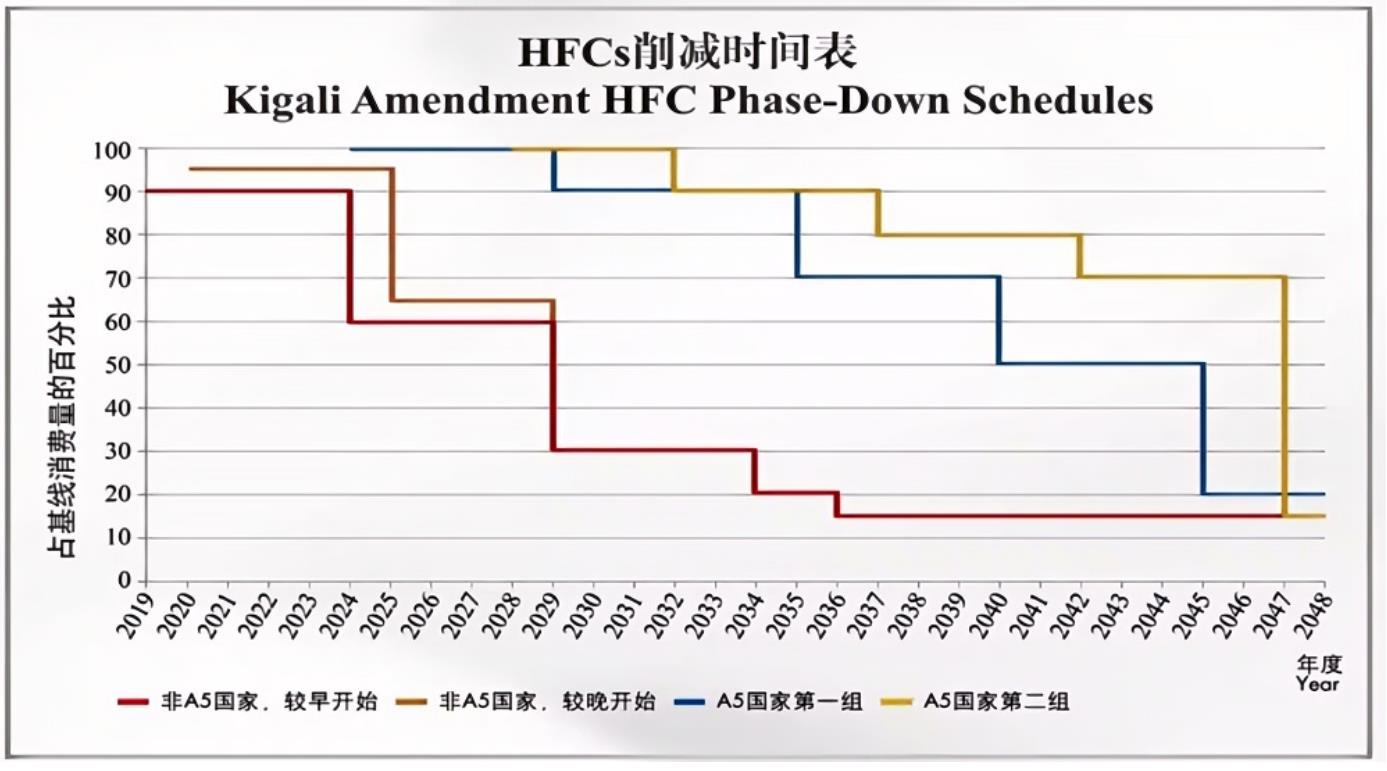

Here is Kigali Amendment HFC Phase-Down Schedules,
For its lower GWP, HFO-1234yf and the mixed refrigerant gas with HFO-1234yf will replace HFC based refrigerant gas in future.
Contact Details:
Zhejiang Guomao Industrial Co.,Ltd.
Zhejiang Zhongyi Exp.&Imp. Co.,Ltd.
Add: No. 659 Jiuzhou West Road, Yongkang Economic
Development Area,Yongkang,Zhejiang, China Zip Code: 321300
Tel:0086-579-87156606 Fax: 0086-579-87158296
E-mail: cindyhu_cn@hotmail.com cindy.hu@guomao-cool.com
WeChat and Cell Phone No.: 0086-13506795105 Website: www.guomao-cool.com
Technical Parameters
| Specifications | 99.9% MIN. |
| Grade Standard | Industrial Grade |
| Transport Package | 10kg disposable steel cylinder, outer carton boxes |
| H.S.CODE | 2903510000 |
| Min. Order | 800cylinders |
| Port of Loading | Ningbo or Shanghai, China |
| Trade Mark | GM COOL,customized |
| Origin | Zhejiang, Jiangsu |
| Certificate | DOT-39,KGS, REACH, CE |
| Production Capacity | 20,000pcs per year |
| IMO UN NUMBER | 3161/2.1 |
